Automatic Transfer Switch (ATS)

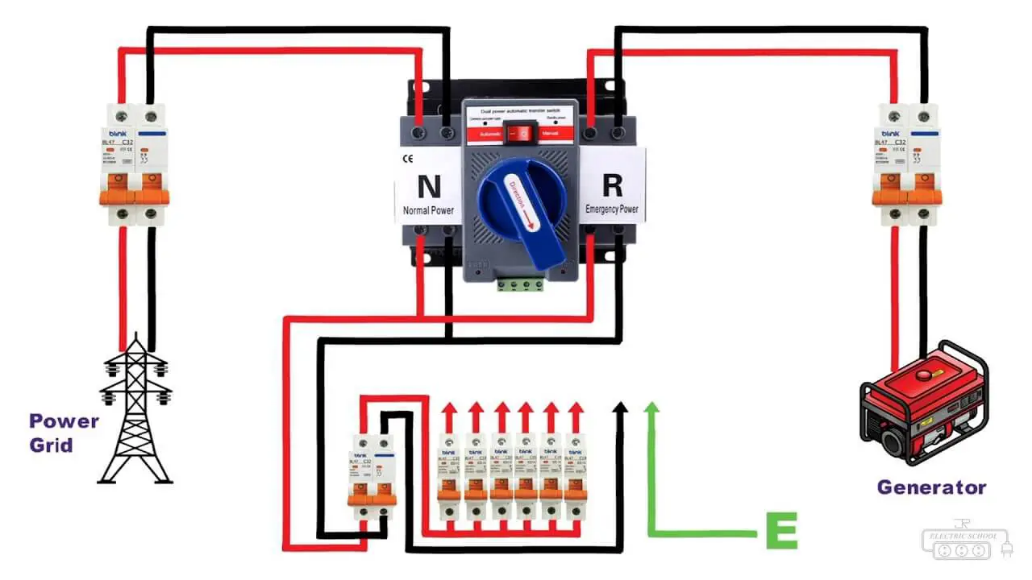

An Automatic Transfer Switch (ATS) is the core component of a power switching system. It automatically transfers electrical power from the primary utility source to a secondary source, such as a backup generator or alternate supply, and switches back once normal power is restored.
In a Three Phase ATS, the controller is more sophisticated than that of a single-phase system. It continuously monitors all three phases and initiates the transfer process when an outage or abnormal condition is detected in the primary power source, while ensuring synchronized switching across all phases.
Dedicated sensing devices, including voltage and frequency monitors for each phase, play a critical role in assessing the health of both the primary and secondary power sources. This ensures a stable, safe, and seamless power transfer.
Transfer time is a key performance parameter in both single-phase and three-phase ATS systems. Minimizing transfer time is essential to prevent disturbances to sensitive equipment during power transitions.
Advanced ATS systems may incorporate a bypass switch, allowing manual or automatic bypass of the ATS for maintenance or repairs without interrupting power supply to critical loads.
Three Phase ATS systems are designed to handle higher power capacities and are more complex and cost-intensive than single-phase ATS units. They are widely used in environments where uninterrupted power is mission-critical, such as industrial facilities, data centers, hospitals, and critical infrastructure, typically in combination with backup generators or alternate power sources.
