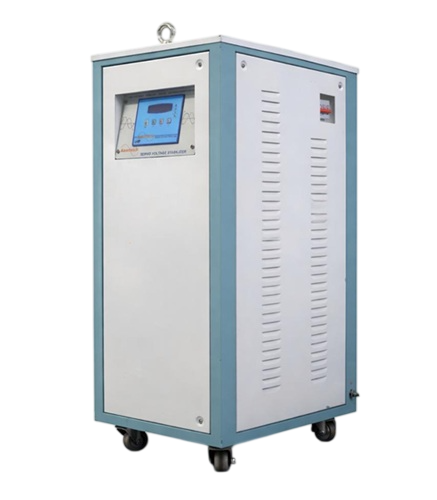

Servo Voltage Stabilizer
Our Servo Voltage Stabilizers are high-end systems designed for fast and accurate correction of voltage fluctuations. Built with rugged construction and premium components, they protect sensitive equipment and improve operational efficiency.
Applications
- CNC Machines
- Industrial & Commercial Equipment
- Biomedical / Scientific Equipment
- Printing & Textile Machinery
- Large Computer Installations
- Telecommunication Equipment
- Cell Phone Networks
3 Phase SCVS – Technical Specifications
| Capacity | 10 / 20 / 30 / 40 / 50 / 60 / 80 / 100 kVA |
|---|---|
| Cooling Type | Air Cooled |
| Input Voltage | 340 – 470 V (or as per requirement) |
| Operating Frequency | 47 – 53 Hz |
| Output Voltage | Adjustable 380 – 415 V AC (Three Phase) |
| Output Voltage Regulation | ±1% |
| Waveform Distortion | Nil |
| Efficiency | More than 92% |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 90% RH Max (Non-condensing at 35°C) |
| System Mode | Fully Automatic / Manual |
| Overload Capacity | 110% for 1 minute |
| Response Time | Less than 10 milliseconds |
| Protections | Low voltage, High voltage, Overload (MCB / MCCB) |
| Emergency OFF | Provided |
| Bypass Switch | Inbuilt |
| Display | 2-line LCD Panel with LED Meter |
| Indications | Input Present, Output Normal, MCB Trip, Bypass |
| Terminations | Bolted terminals up to 100 kVA, Busbar above 150 kVA |
This is a customized solution. Specifications may vary based on customer requirements.
